DORIT high speed Fiber Optic Handpieces with kavo type led coupling
2/4/6 hole connection
High speed Fiber Optic Handpieces Features:
1. Quattrao spray, Separted water and air outlets;
2. Push button chuck system, high working efficiency;
3. Water non-return valve prevent contaminated water from entering
the hanpiece;
4. Selected Chrome-plated copper body, withstand high temperature and high
pressure sterilization;
5. Fiber optic light, natural light, more brightness;
6. Kavo type coupling, led light, 2 hole, 4 hole, 6 hole for
choice;
High speed Fiber Optic Handpieces Tech data:
| Drive air pressure | 0.25-0.3Mpa |
| Water pressure | 0.2Mpa |
| Light brightness | 25500lux |
| Power | 22W(standard head); 25W(torque head) |
| Rotation speed | 300,000~350,000rpm(Torque); 350,000~420,000rpm(Standard) |
| Head diameter | Φ12.5mm(torque)/ Φ11.2mm(standard) |
| Chuck type | Push button |
| Clamping force | 22N~34N |
| Torque force | 0.09-0.11N·cm(standard head); ≥0.13-0.14N·cm(torque head) |
| Bur Applicable | Φ1.59mm-Φ1.60mm*21mm-23mm(diameter*length) |
| Noise | ≤60DB |
Fiber optic handpieces detailed photos:
Product details:
Quattro water spraying
Quattro air spraying
Fiber optic light source, more stable
Push button to take turs,
Sandblasted and non-slip surface

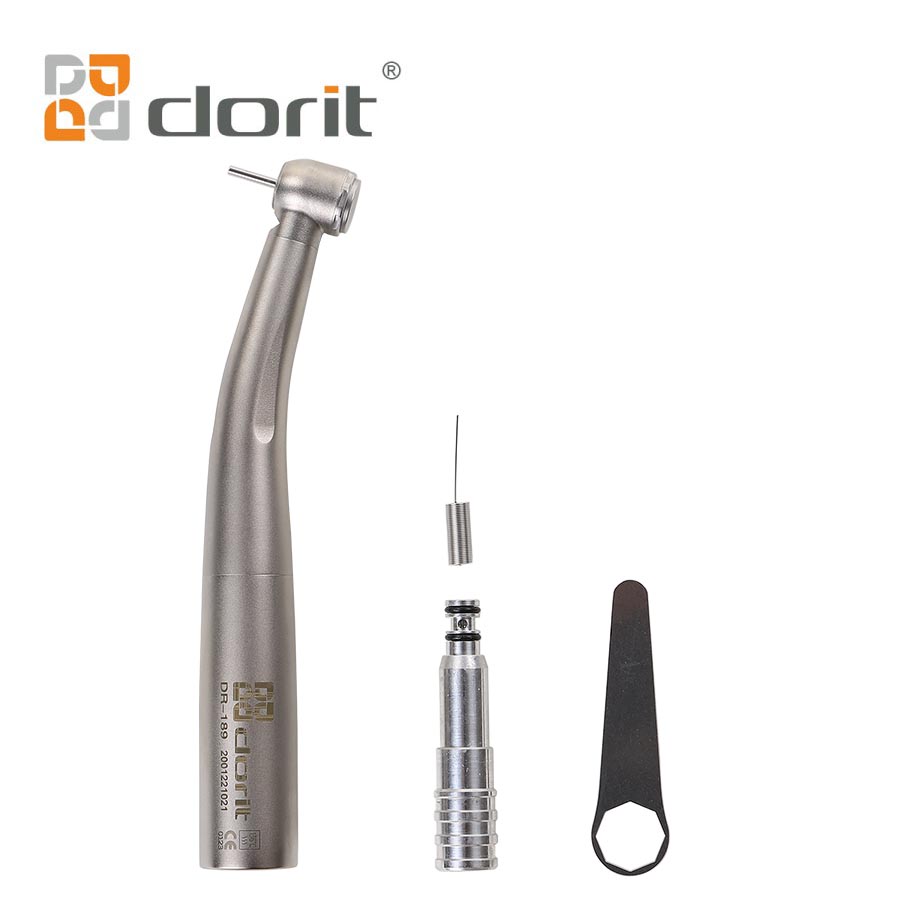

Newly designed package
With insturments in, for opening caps, for lubrication etc
