CE Certified Torque Head M4 Hole High Speed Single Spray
Handpiece With Cheap Price
Product Description
1. Chinese ceramic ball bearing; open style cartridge.
2. Lower cost, higher performance.
3. Single spray, accurately spray cooling water to the high-speed
cutting parts for good cooling effect.
4. Push button type to change bur, easy and convenient .
5. Streamlined design, comfortable for hand feeling, easy to clean.
6. Quiet operation not more than 60db to protect your hearing.
DR-160 dental handpiece Technical Data
| Air pressure at the back end of HP | 206-231KPa(2.1-2.35kgf/cm2) |
| Air pressure at the gauge in dental unit | 277-316Kpa(2.8-3.2kgf/cm2) |
| Water pressure | 198Kpa(2kg) |
| Power | 25W(Torque) |
| Rotation speed | 300,000~350,000rpm(Torque) |
| Head height | 13.1mm(Torque) |
| Head diameter | Φ12.5mm(torque) |
| Chuck type | Push button |
| Clamping force | 22N~34N |
| Bur Applicable | Φ1.59mm-Φ1.60mm*21mm-23mm(diameter*length) |
| Noise | ≤60DB |
We also have 2 hole 6 hole dental handpiece, if you need other
model handpiece turbine, please tell us your require, We will meet your request!

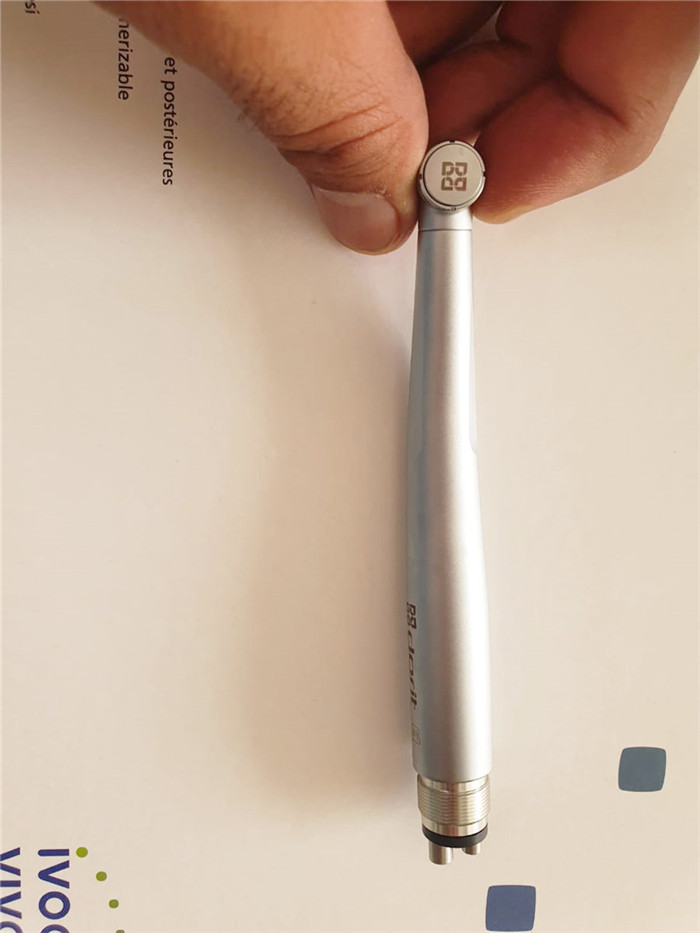

Dental Handpiece DR-160 Image
Our services
1. The products is warranted for one year from the date of
effective delivery(except for artificial damage)
2. Problems caused by the following cases are not include in scope
of quality warranty:
a. Non-observance of use and maintenance instruction, tumbles or
beats;
b. Improper storing;
c. Action of natural agents and technical assistance carried out by
non-authorized personnel.
3. Quality warranty will be stopped under these following cases:
a. Alterations in the product;
b. Use of improper fittings;
c. Technical assistance carried out by Dorit non-authorized person.
4. This warranty is valid in the country where the sales documents
were permitted.
What are we supplying?
1. Dental handpiece
2. Endo motor
3. Endodontic Files
4. Dental equipment accessories
5. other dental equipment
Why choose us?
1. Complete Price
2, Supporting OEM Services
3. Provide Professional After-Sale Services for customers
