Standard Head/Torque Head High Speed Triple Spray
2 Hole 4 Hole Dental Handpiece
Advantage
1. Chinese ceramic ball bearing; open style cartridge.
2. Triple spray, effective cooling for bur and treating contact
surface.
3. Push button type to change bur, easy and convenient.
4. sterilized in 135℃ to avoid cross-infection.
5. Streamlined design, comfortable for hand feeling, easy to clean.
Technical Data
| Triple spray 3 way spray 3 air 2 hole / 4 hole 2 hole / 4 hole 2 hole / 4 hole |
| |
| |
| Chuck type | Push button |
| Noise | ≤60dB |
| Head Diameter |
Φ12.5mm(torque)/ Φ10.8mm(standard) |
| Bur applicable |
Φ1.59mm-Φ1.60mm*21mm-23mm(diameter*length) |
| Rotation speed |
300,000~350,000rpm(Torque); 350,000~420,000rpm(Standard) |
| Head height | 13.1mm(Torque)/13.0mm(Standard) |
| Power | 22W(standard); 25W(torque) |
| Light brightness | 25500lux |
Steps for disinfection of dental turbine handpieces
1. First remove the diamond burs , and clean up all the teeth on
dental handpieces precipitate
2. Use a metal needle to clean the spray holes and fumaroles
Note: The spray holes and diamond burs into 40 -degree angle ,
fumaroles and diamond burs to a 30 degree angle
3. Place the clean lubricating oil is sprayed into the axial hole
1-2 seconds ( diamond burs is plugged holes )
4. In the bottom of the handpiece were ( with / without quick
connector ) two kinds of styling , make the right amount of
lubricant is injected into the bottom
5. The handpiece with quick connector combination ( first determine
the water switch is turned off )
6. Replace the diamond burs , surrounded by white silk cloth
handpiece head ( make sure the needle does not touch the diamond
burs and white gauze , so as not to tie )
7. pedal depressed for about 20 seconds , look at whether there is
in white gauze on any stain. If there are stains on the white gauze
, again, add oil , starting from item 4 continued routine
maintenance , know that white gauze until no stain
8. Finally, no more than 135 degrees Celsius temperature and high
pressure sterilization
Trade show

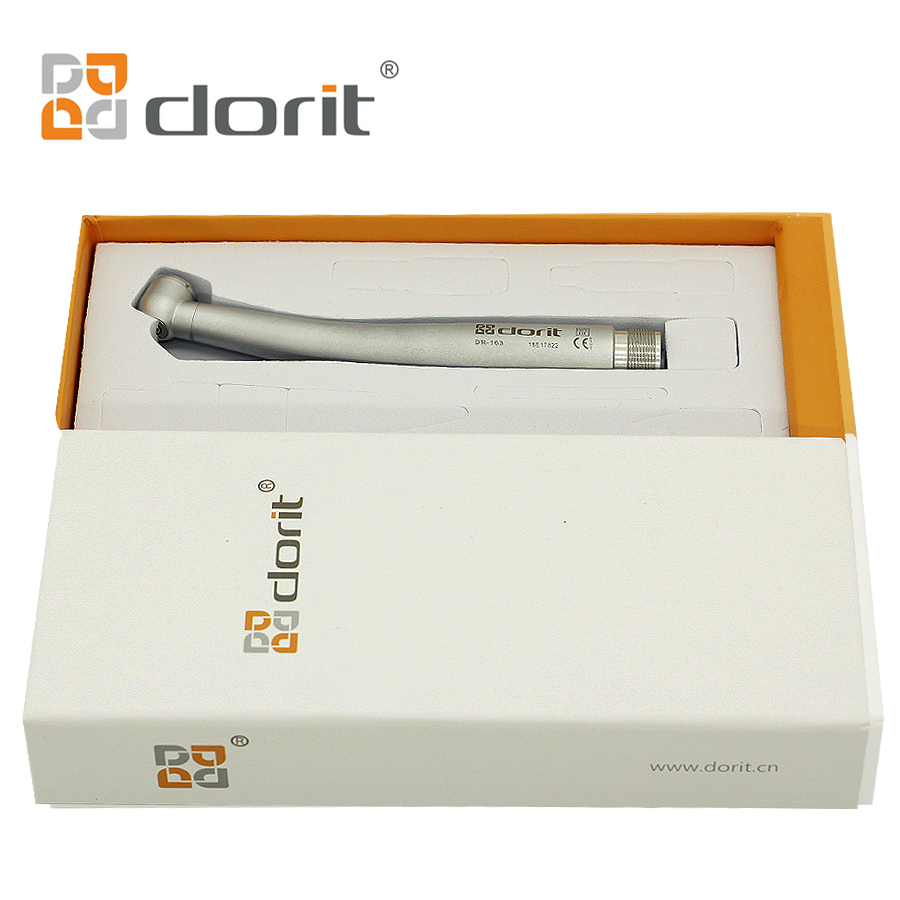

Product image
