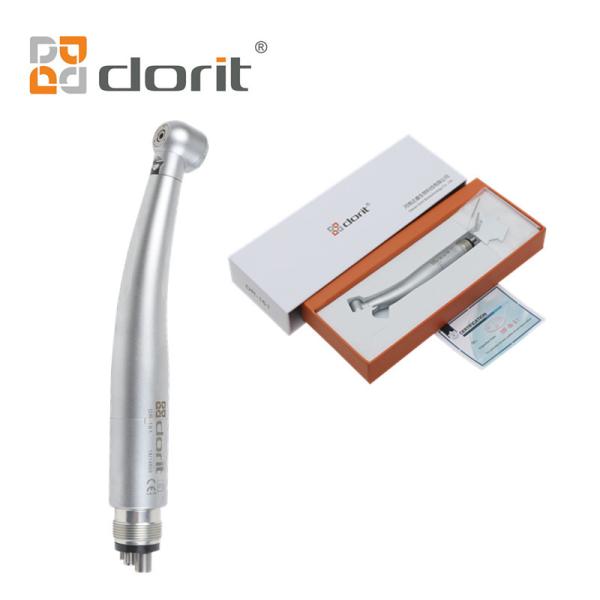

Dental E-Generator Fast Handpiece LED High Speed
Ceramic Bearing Handpiece
Dental E-Generator Fast Handpiece Features:
The dental handpiece LED high speed handpiece & swivel with inbuilt
generator creates LED light in the mouth.
Simple FG bur changing
Precision bur cooling – triple coolant spray produces a mist around
the bur.
Patented hygienic head – Prevents aerosol particles from being
sucked into the turbine.
1 year warranty.
1. Low noise,Standard head
2. Triple water spray, LED handpiece integrate E-generator
3. 4-Hole/2-Hole Push Button system
4. Unique electric generator, just a little air can generate
sufficient power
5. 135°C Autoclavable
6. For the LED bulb, continuous use of up to ten thousand hours,
don't need to change the pipeline, easy to use; The world dental
chair two holes, four holes. 7.Warranty:one year for handle; three
months for cartridge
Dental E-Generator Fast Handpiece Tech data:
| Product name | Dental E-Generator Fast Handpiece |
| Drive air pressure | 0.25-0.3Mpa |
| Water pressure | 0.2Mpa |
| Water pressure | 198Kpa(2kg) |
| Light brightness | 25500lux |
| Power | 22W |
| Rotation speed | 350,000~420,000rpm |
| Head height | 13.0mm |
| Head diameter | Φ11mm |
| Chuck type | Push button |
| Clamping force | 22N~34N |
| Torque force | 0.1N·cm(small head); ≥0.1N·cm(large head) |
| Bur Applicable | Φ1.59mm-Φ1.60mm*21mm-23mm(diameter*length) |
| Noise | ≤60DB |
Why choose us?
We are manufacturer for producing and supplying high speed dental
handpiece , low speed dental handpiece, dental implant handpiece,
endodontic files, and other relative dental instruments for many
years .OEM & ODM orders are available , if you do not find the right items you are looking for,kindly
please leave us message , we will reply you within 24hours .Thanks!
Instruction:
After each treatment,Sterilizing handpiece in autoclave according
to the following steps:
1.Remove the bur and brush clean handpiece, clean outside of
handpiece with an alcohol solution.
2.Lubricate handpiece, each times drop two drops inside of air
inlet pipe.
3.Place into autoclaving pouch and mark.
4.Autoclave the handpiece for 12 min. at 135ºC.
