Dental Implant Handpiece High Quality Push Button Type 20: 1 Fiber
Optic Motor
Contra Angle Handpiece

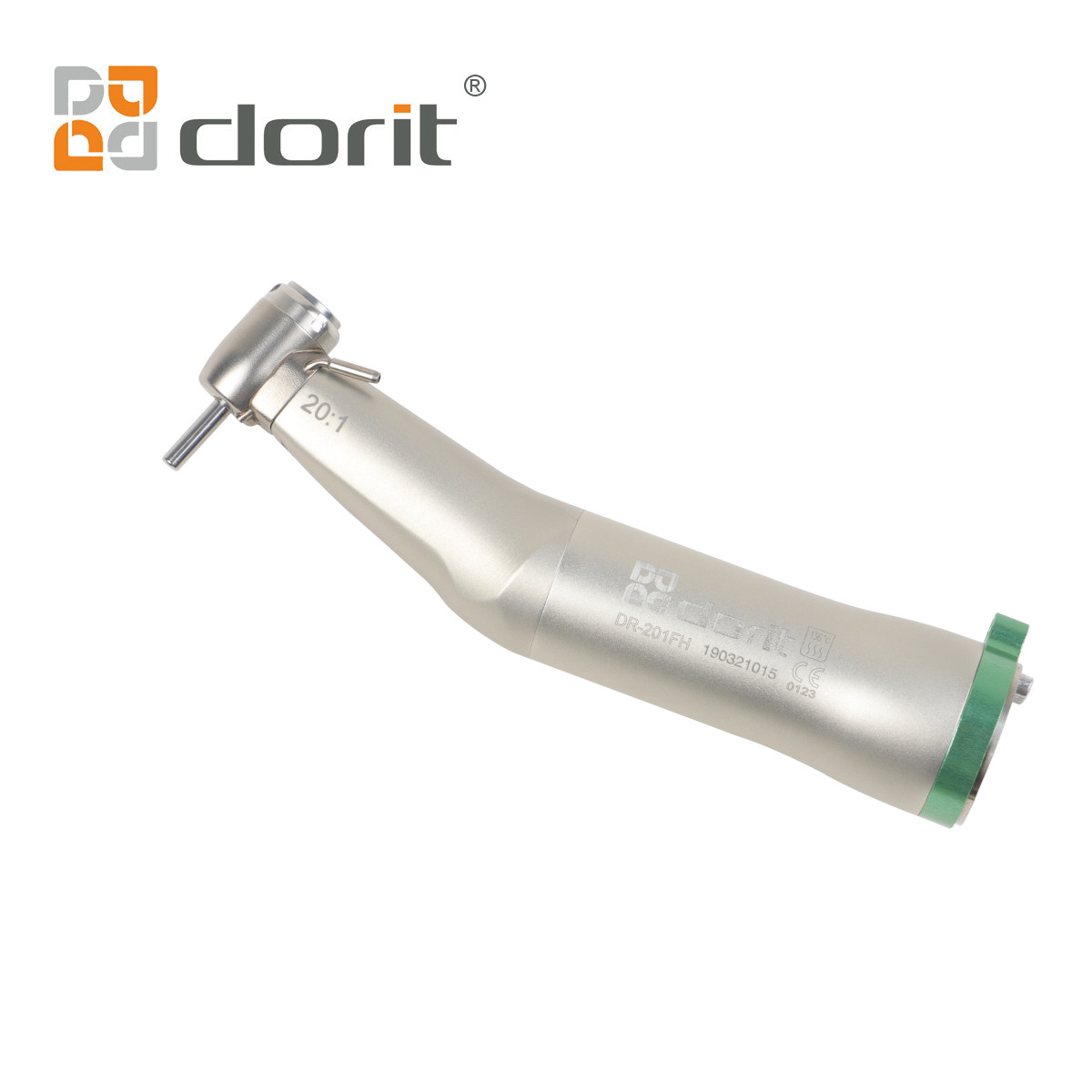

Quick View of dental optic implant handpiece
Japan ceramic bearing/ Titanium materials/ NSK compatibility
20:1 Dental optic implant handpiece technical data
Gear ratio | 20:1 |
Maximum speed | 0-2500rpm |
Max torque | 65 N·cm |
Working air pressure | 0.3~0.35Mpa |
Noise | ≤50db |
Bur applicable | Φ2.33~2.35mm |
Water irrigation | Internal and external irrigation |
20:1 Dental optic implant handpiece feature
1. Chuck type: push button
2. External and internal irrigation, better cooling
3. High precision gear low noise
4. ISO standard connector, compatible with any kinds of dental
implant system
5. Made with titanium materials
6. High brightness and stable fiber optic light
Details of dental implant handpiece
product information
Henan Dorit Biotechnology Co., Ltd is located in the National
University Science Park of Hi-Tech Development Zone, Zhengzhou,
Henan Province. Dorit is an innovative company which is focus on
R&D, manufacture and sales of dental products. Our target
is“share wealth with the world;Soul moisten in the dental
profession” We are adhering to the company’s mission "Quality
assurance is the responsibility, Technology is the advantage,
Innovation leads the future", and implement these philosophies to
the company’s management, product R & D and manufacturing. Dorit
Company continues to absorb high-grade, precision and advanced
talents to integrate related industry resources in order to offer
better and more comprehensive services to the society.
We are manufacturer for producing and supplying high speed dental
handpiece , low speed dental handpiece, dental implant handpiece,
endodontic files, and other relative dental instruments for many
years .OEM & ODM orders are available , if you do not find the
right items you are looking for,kindly please leave us message , we
will reply you within 24hours .Thanks!
Instruction:
After each treatment,Sterilizing handpiece in autoclave according
to the following steps:
1.Remove the bur and brush clean handpiece, clean outside of
handpiece with an alcohol solution.
2.Lubricate handpiece, each times drop two drops inside of air
inlet pipe.
3.Place into autoclaving pouch and mark.
4.Autoclave the handpiece for 12 min. at 135ºC.
Operation Instruction:
It shall be sterilized before handpiece is used at the first
time;sterilization temperature is 135ºC and last for 12 minutes.
After using,Please follow the instruction to sterilize the
handpiece:
1 extract the bur from the handpiece,use the soft brush to clean
the dirt and wash with disinfection of alcohol cotton.
2 lubricate the handpiece,pour two drops into air tube one time.
3 wrap it with sterilization package and mark.
