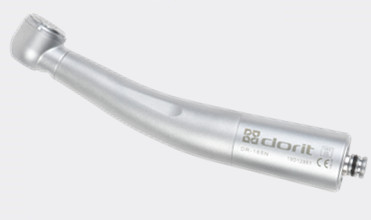

TOP MEDICAL DR-165N Fiber Optic High Speed Dental
Handpiece With Quick Coupling
dental High Speed fiber optic nsk turbine handpiece
1.German spindle and bearing, great clamping force
2. New design of air-in system, better airflow
3. Fiber optic light, more brightness
4. Three water spraying outlets
5. Nsk handpiece 2/4 holes
Dental High Speed fiber optic turbine nsk handpiece
Technical data:
| Products Name | High Speed NSK Handpiece |
| Water Spray | Triple spray |
| Drive air pressure | 0.25-0.3Mpa |
| Water pressure | 0.2Mpa |
| Water pressure | 198Kpa(2kg) |
| Light brightness | 25500lux |
| Power | 22W |
| Rotation speed | 300,000~420,000rpm |
| Head height | 13.1mm |
| Head diameter | Φ11mm |
| Chuck type | Push button |
| Clamping force | 22N~34N |
| Torque force | 0.1N·cm |
| Bur Applicable | Φ1.59mm-Φ1.6mm*21mm-23mm(diameter*length) |
| Noise | ≤60DB |
dental High Speed fiber optic nsk turbine handpiece
Detailed photos:
Fiber optic light, great brightness Special design for easy holding |
3 water spray, ideal cooling effect |
NSK ype 6 holes ISO Standard quick coupling |
dental High Speed fiber optic turbine handpiece with NSK type 6 hole led coupling |
Company information
Henan Dorit Biotechnology Co., Ltd is located in the National
University Science Park of Hi-Tech Development Zone, Zhengzhou,
Henan Province. Henan Dorit specialize in dental treatmen equipment area, main
product contains high or low speed dental handpiece, ultrasonic scaler, three-way syringe and Dental LED Curing light.
Low speed dental handpiece are mainly used to wear dentures, polished and planted. Divided
into straight and bending machine.
High Speed dental handpiece mainly used to do treatment and repair more (such as holes,
cutting).
All our product with CE, TUV, FDA certification, some areas can provide sample service, if you need,
pls contact us anytime.
Packaging and shipping
1, each item will be strictly checked by QC, providing more care
for your items.
2, each carton will be well wrapped and given advance tests in
order to make the cargo delivered to your door without any damages.
3,If you need, we can also do your own package & logo printed.
