High Quality Dental Fast Speed E Generator Fiber Optic LED
Handpiece Standard Torque Push Button Quattro Spray
Fiber Optic Handpieces Features:
1. Quattrao spray fiber optic handpiece, Separted water and air
outlets;
2. Push button chuck system, high working efficiency;
3. Water non-return valve prevent contaminated water from entering
the fiber optic handpiece;
4. Selected Chrome-plated copper body, withstand high temperature and high
pressure sterilization;
5. Fiber optic light, natural light, more brightness;
6. Kavo type coupling, led light, 2 hole, 4 hole, 6 hole for
choice;
Fiber Optic Handpieces Tech data:
| Product name | Fiber optic dental handpiece |
| Drive air pressure | 0.25-0.3Mpa |
| Water pressure | 0.2Mpa |
| Light brightness | 25500lux |
| Power | 22W(standard head); 25W(torque head) |
| Rotation speed | 300,000~350,000rpm(Torque); 350,000~420,000rpm(Standard) |
| Head diameter | Φ12.5mm(torque)/ Φ11.2mm(standard) |
| Chuck type | Push button |
| Clamping force | 22N~34N |
| Torque force | 0.09-0.11N·cm(standard head); ≥0.13-0.14N·cm(torque head) |
| Bur Applicable | Φ1.59mm-Φ1.60mm*21mm-23mm(diameter*length) |
| Noise | ≤60DB |
Fiber optic handpieces detailed photos:
Product details:
Quattro water spraying
Quattro air spraying
Fiber optic light source, more stable
Push button to take turs,
Sandblasted and non-slip surface

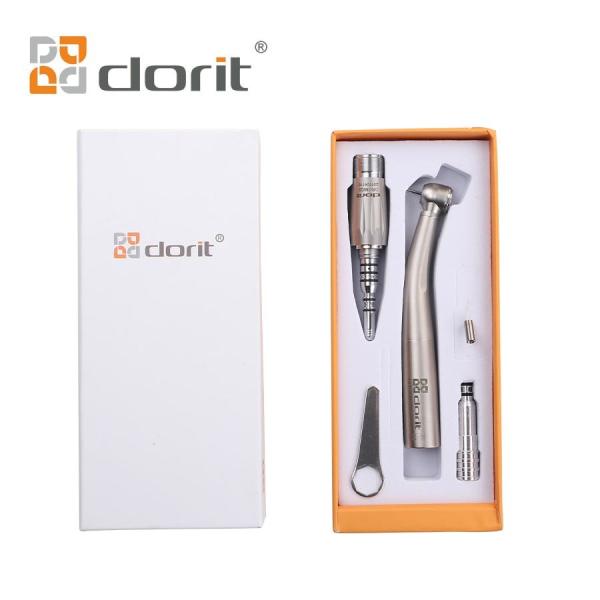

Newly designed package
With insturments in, for opening caps, for lubrication etc
After each patient use , maintenance should be done as follows:
1. First remove the diamond burs , and clean up all the teeth on
dental handpieces precipitate
2. Use a metal needle to clean the spray holes and fumaroles
Note: The spray holes and diamond burs into 40 -degree angle ,
fumaroles and diamond burs to a 30 degree angle
3. Place the clean lubricating oil is sprayed into the axial hole
1-2 seconds ( diamond burs is plugged holes )
4. In the bottom of the handpiece were ( with / without quick
connector ) two kinds of styling , make the right amount of
lubricant is injected into the bottom
5. The handpiece with quick connector combination ( first determine
the water switch is turned off )
6. Replace the diamond burs , surrounded by white silk cloth
handpiece head ( make sure the needle does not touch the diamond
burs and white gauze , so as not to tie )
7. pedal depressed for about 20 seconds , look at whether there is
in white gauze on any stain. If there are stains on the white gauze
, again, add oil , starting from item 4 continued routine
maintenance , know that white gauze until no stain
8. Finally, no more than 135 degrees Celsius temperature and high
pressure sterilization
